2 meters preamplifier (CB20257E)

Details
Written by: Newton C. Braga

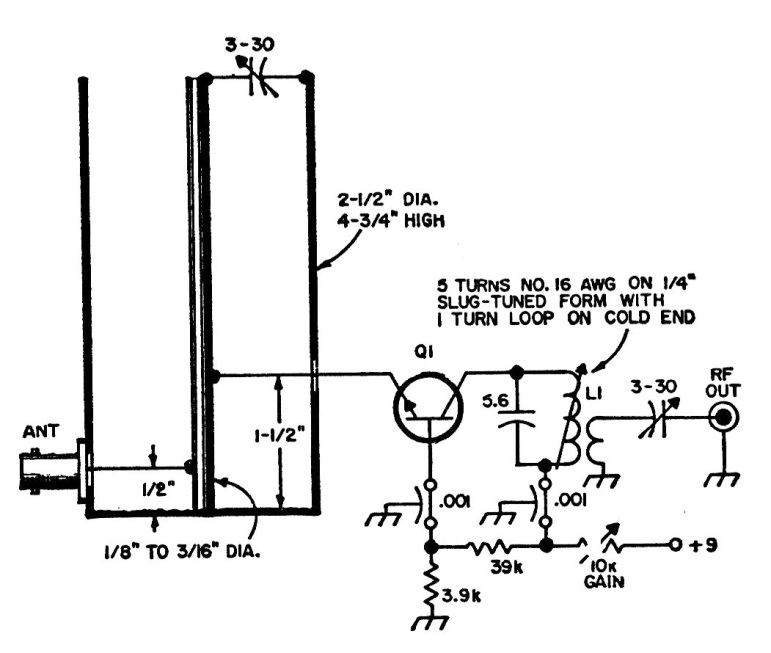

This circuit, very critical due to the frequency at which it operates, was found in an American documentation that uses a resonant cavity in a beer can. The transistor can be of any type for RF.




| Clique na imagem para ampliar |
