Gate dip Meter (CB21046E)

Details
Written by: Newton C. Braga

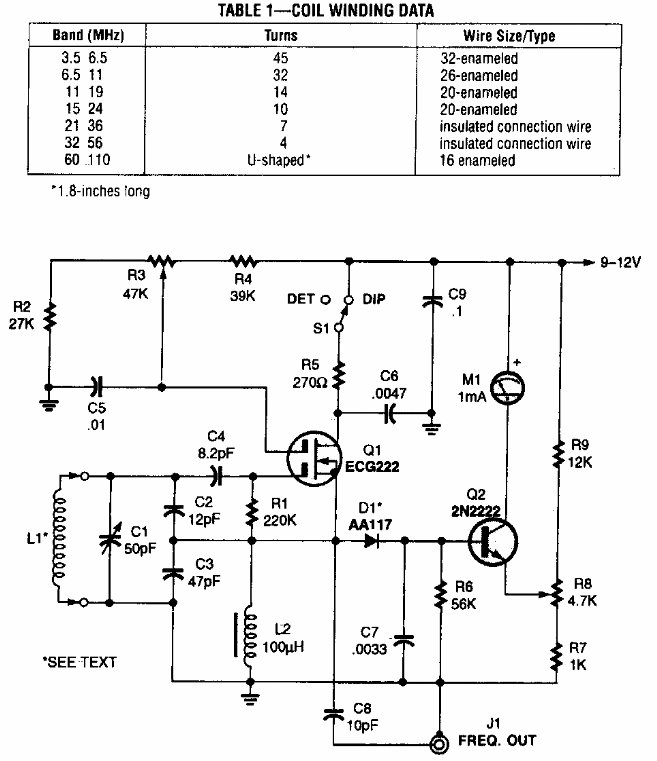

This circuit was found in a Popular Electronics from the 90's. It consists of the solid-state variation of the well-known grid-dip meter. MOSFET is a component not very easy to obtain these days.






| Clique na imagem para ampliar |
