455kHz Oscillator (CB21137E)

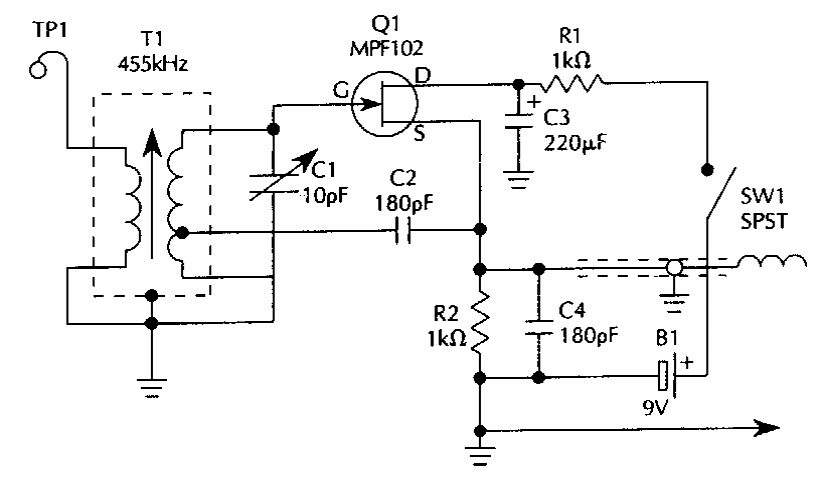

This oscillator uses a small IF transformer taken from an old transistor radio. FET admits equivalents. The circuit can be used to calibrate radios.

| Clique na imagem para ampliar |

20 mA Current Source (CB13423E)
This source of constant current was obtained in an American documentation of 1973. The transistors can be...
Shadow Relay (CB3867E)
When light fails to focus on the sensor, a common photo-transistor, the relay closes its contacts....
Analog Multiplexer (CB21250E)
This low impedance circuit was found in an Electronic Design from the 90's. Operational amplifiers admit...
