Proportional control (CB21376E)

Details
Written by: Newton C. Braga

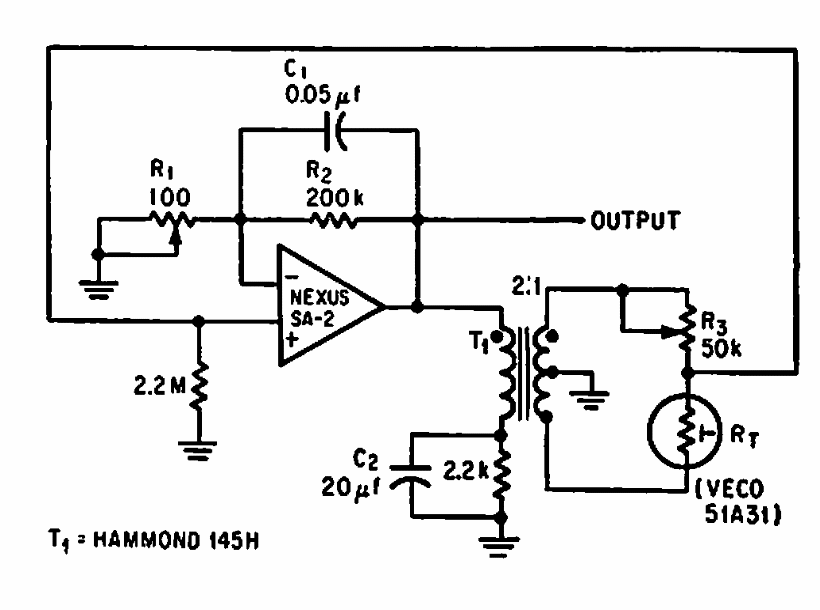

We found this circuit in an old American documentation. The operational amplifier is from the time and the output used to control an SCR or other power control.




| Clique na imagem para ampliar |
