Variable astable 4093 (CB21127E)

Details
Written by: Newton C. Braga

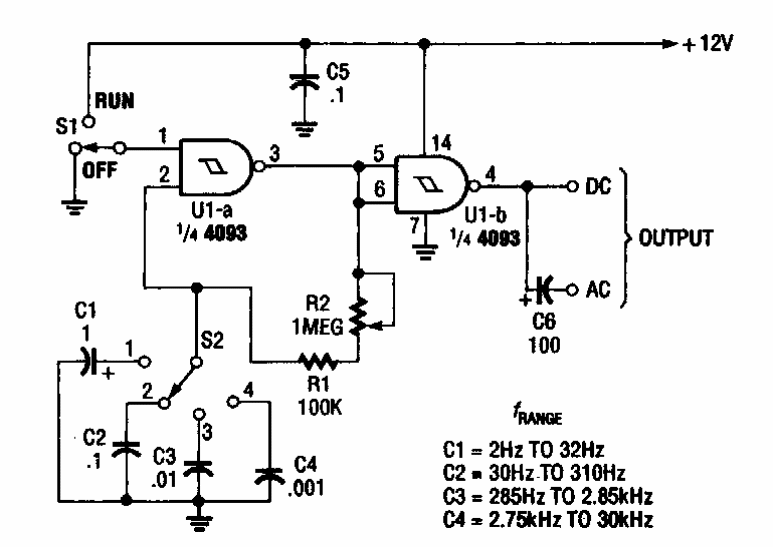

This circuit was found in a Popular Electronics from the 90s. The circuit has 4 frequency ranges selected according to the capacitors. Signal is rectangular.




| Clique na imagem para ampliar |
