Up to 10 minutes timer (CB21435E)

Details: Written by: Newton C. Braga

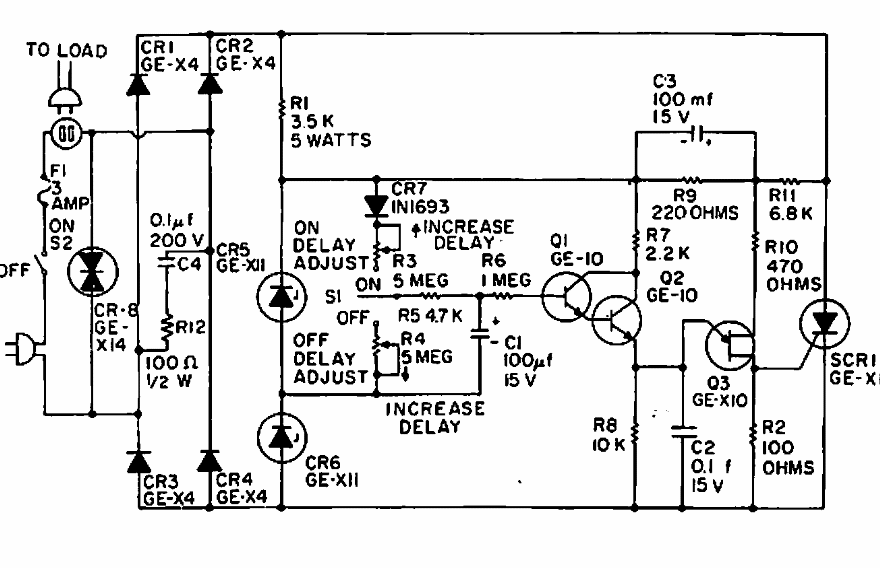

We found this circuit in an old General Electric documentation. The load maximum power depends on the SCR.

| Clique na imagem para ampliar |
