3.3V Adjustable Regulator (CB21167E)

Details
Written by: Newton C. Braga

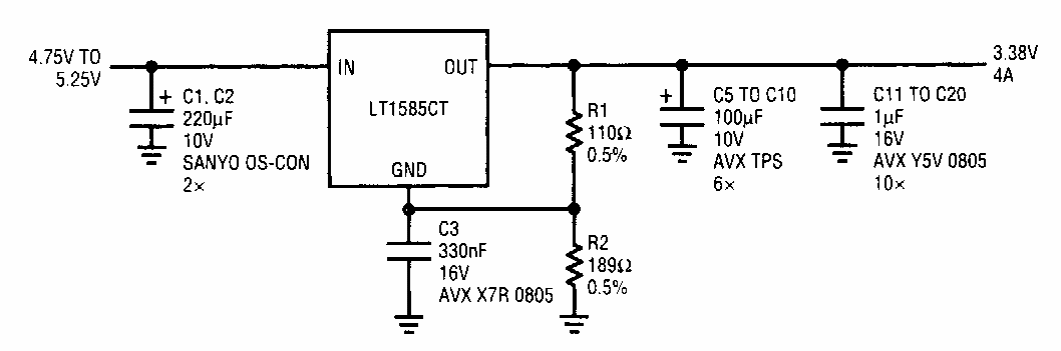

Found in a Linear Technology documentation from the 1990s, this circuit has the voltage adjusted by resistors R1 and R2 according to the formula given in the diagram.

















| Clique na imagem para ampliar |
