Adjustable power supply (CB21191E)

Details
Written by: Newton C. Braga

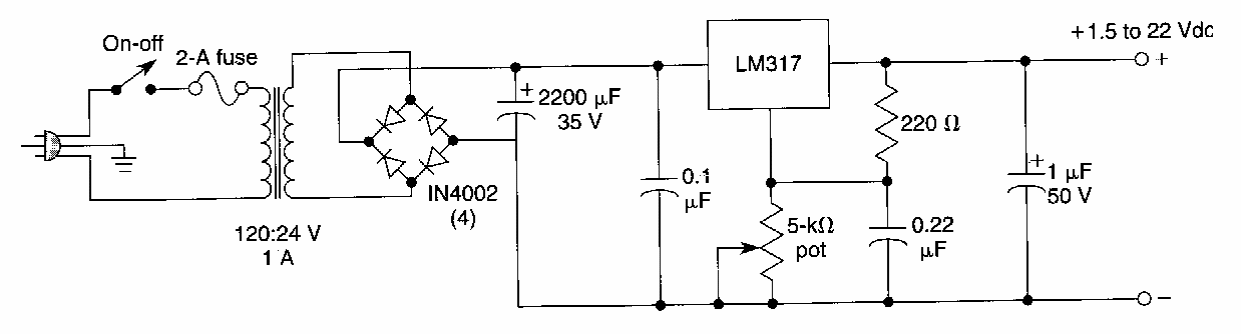

Found in an American documentation from the 90's, this 1.5 A power supply provides 1.5 to 22 V of output. The integrated circuit must be mounted on a heat sink.
