Broadband Amplifier (CB21856E)
- Details
- Written by: Newton C. Braga

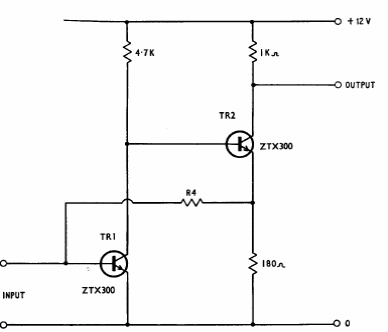

This circuit was taken from the 1974 Ferranti transistor manual. Transistors are common types at the time. The passband is 9 MHz and the voltage gain 10.
