Collector triggered Bistable 2 (CB21840E)
- Details
- Written by: Newton C. Braga

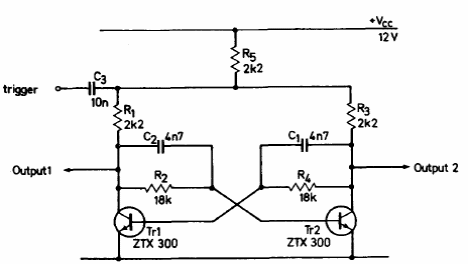

This circuit, for slow bistables, was found in Ferranti's transistor manual from 1974. The transistors are general purpose, and the maximum operating rate reaches 50 kHz.
