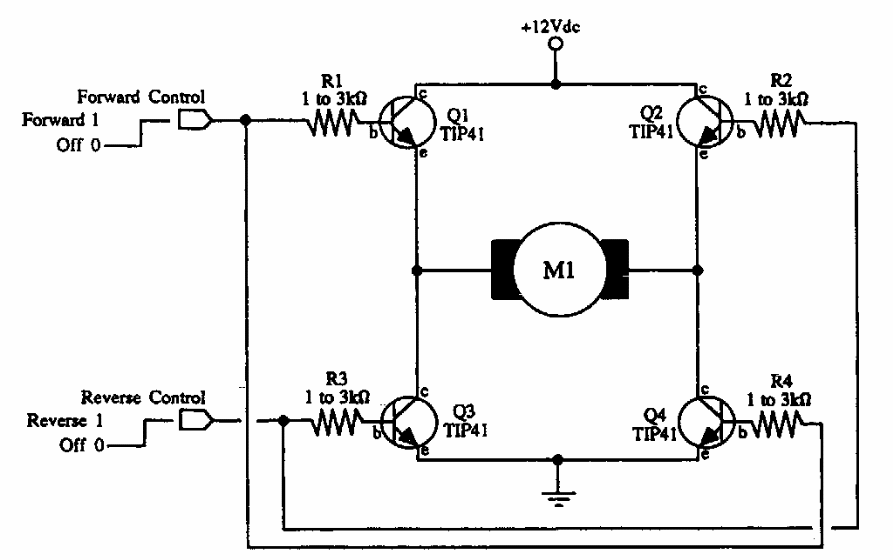

This circuit was taken from old American documentation. The transistors used make it possible to control a motor with up to 2 A of current. They must be equipped with heat sinks.
.
| Clique na imagem para ampliar |
H Bridge (CB21092E)
- Details
- Written by: Newton C. Braga
