Telephone amplifier (CB22053E)
- Details
- Written by: Newton C. Braga

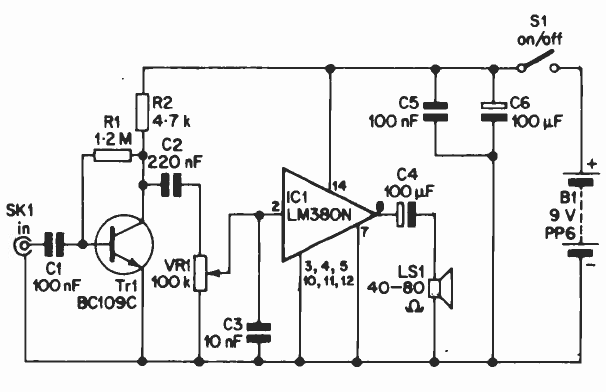

Using the LM380, this circuit provides a power of the order of 200 mW. In it we have a stage of pre-amplification for microphone. The power supply can be 6 to 12 V.
