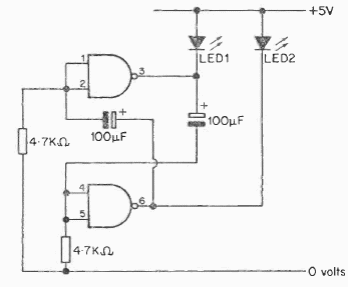

The frequency of this circuit is determined by the 100 uF capacitors. These components can be changed. It is convenient to connect 330-ohm resistors in series with the LEDs to limit current.
2-LED flasher with the 7400 (CB22416E)
- Details
- Written by: Newton C. Braga
