Signal Tracer (CB22015E)
- Details
- Written by: Newton C. Braga

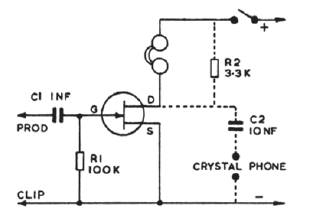

This circuit was found in old documentation. Transistors can be general purpose JFET types and the headphone on the transistor drain must be high impedance.
