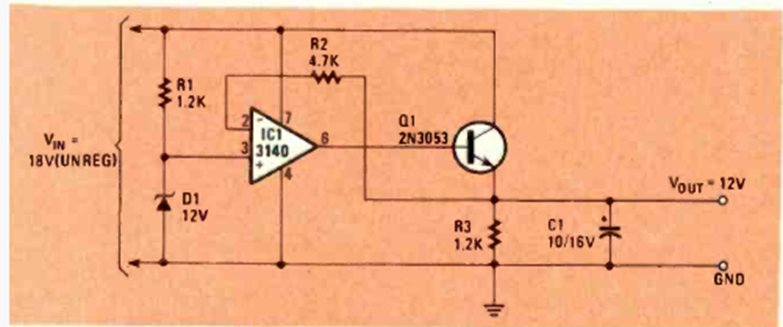

This circuit is from a Radio Electronics magazine from July 1984. The transistor determines the maximum current, and the zener diode the output voltage. The transistor must be equipped with a heat sink.
| Clique na imagem para ampliar |
12 V Regulator with Operational Amplifier (CB24824E)
- Details
- Written by: Newton C. Braga
