Medium Power Amplifier (CB24110E)

Details
Written by: Newton C. Braga

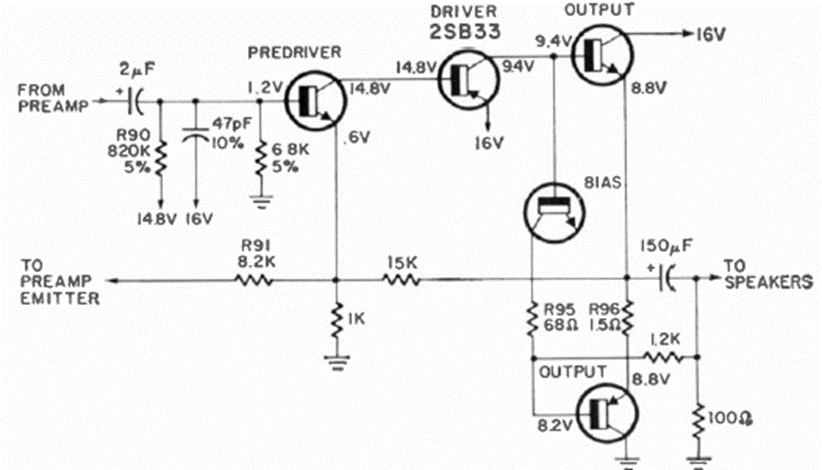

This circuit from a March 1971 Radio Electronics uses a transistor to stabilize the bias current of the output transistors. The circuit is médium power.
