Automotive Voltage Regulator (CB24642E)

Details
Written by: Newton C. Braga

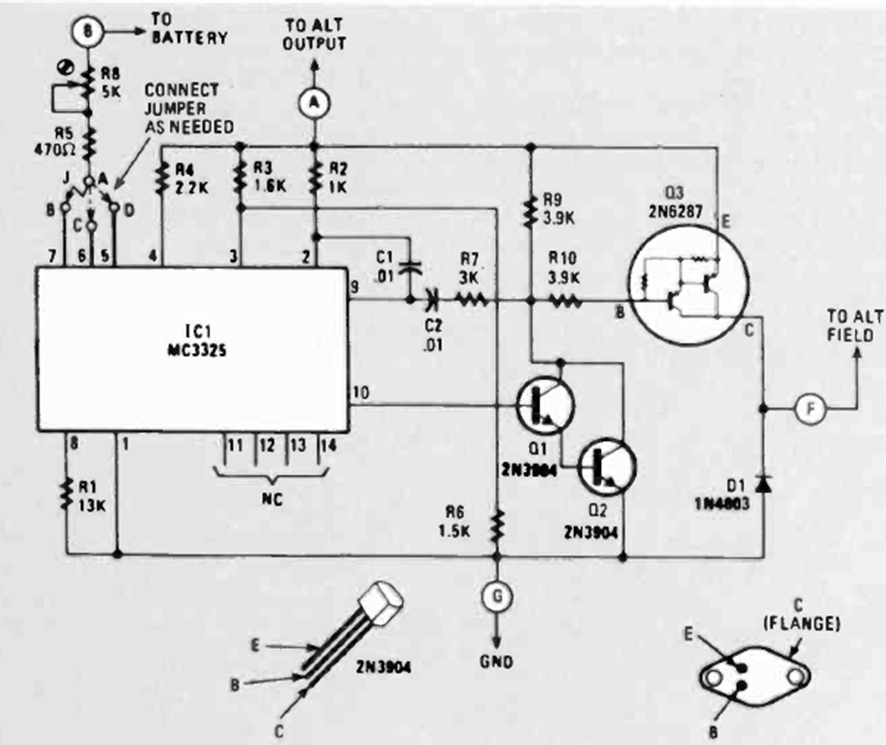

This circuit was found in the June 1980 issue of Radio Electronics magazine. The circuit uses an integrated circuit from time, and a power Darlington that must be equipped with a heat sink.




| Clique na imagem para ampliar |
