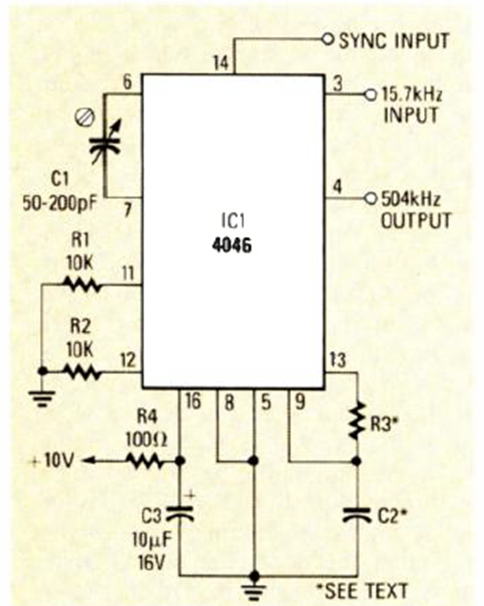

The purpose of this PLL circuit that we found in the November 1986 Radio Electronics magazine is to divide the frequency of a signal by 32. It inputs 504 kHz and outputs 15.7 kHz. The circuit is used with video signals.
