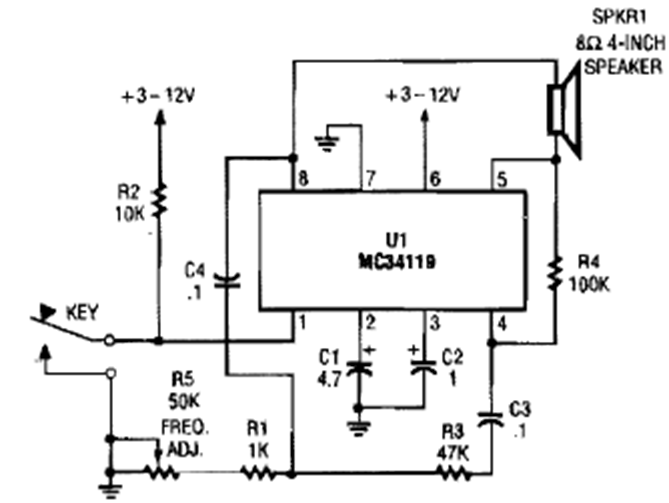

This variable frequency circuit was found in a Popular Electronics from the 90s. The circuit outputs to a small speaker and can be powered by voltages as low as 3 V.
| Clique na imagem para ampliar |
Variable Morse Oscillator (CB26326E)
- Details
- Written by: Newton C. Braga
