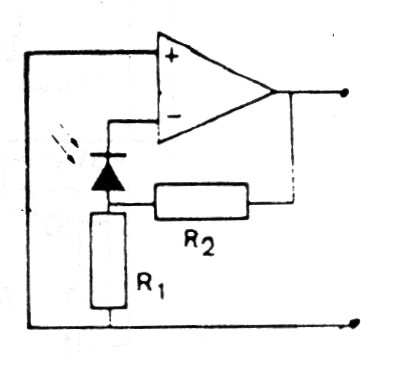

Found in 1980s documentation, this amplifier uses a symmetric source and the gain is given by the ratio of R2 to R1. Typical values are 1 M for R2 and 1 k for R1. The circuit has an inverting action.
