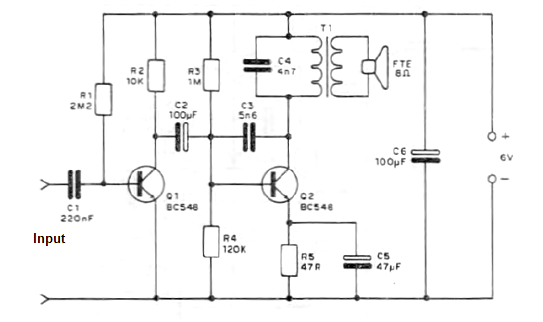

This simple circuit can be used as audio output stage for intercoms, experimental radios and other low Power applications. The transformer is a type found in old transistor radios and the circuit can be powered from a 6 V supply. Output power is some hundreds milliwatts and transistor can be replaced by equivalent.
Audio Output Stage
