555 Sequencer (CB3981E)

Details
Written by: Newton C. Braga

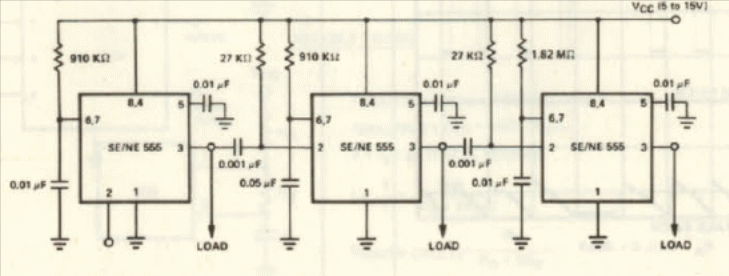

   This circuit generates sequence of pulses in order and times determined by the capacitors in pins 6 and 7 of each timer. The circuit is from an old Mullard (Philips) manual.




| Clique na imagem para ampliar |
