Pulse Scrambler (CB20547E)

Details
Written by: Newton C. Braga

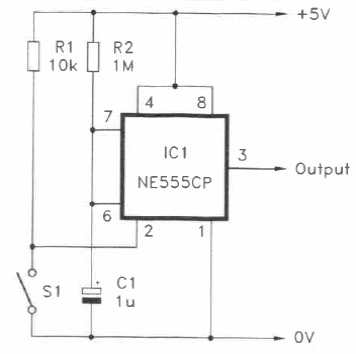

This circuit assumes that a pulse produced by S1 has a constant duration determined by R1 and C1.
