Reflex receiver (CB20557E)

Details: Written by: Newton C. Braga

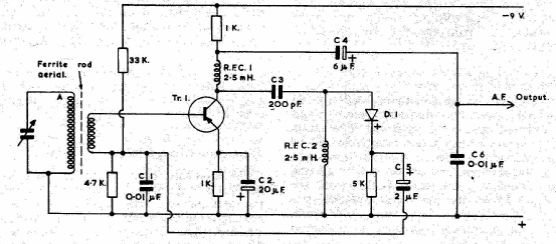

This 1-transistor reflex receiver was found in a 1963 publication. The coil is for the mid wave range and any general-purpose germanium transistor can be used.
