Two Transistor Super heterodyne (CB20574E)

Details
Written by: Newton C. Braga

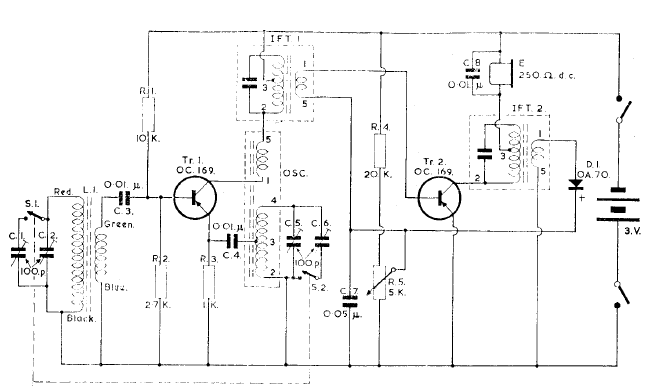

This circuit was found in an English publication from 1967. The circuit is for listening on a phone. Transistors are types of germanium of the time.
