3 W amplifier (CB20576E)

Details
Written by: Newton C. Braga

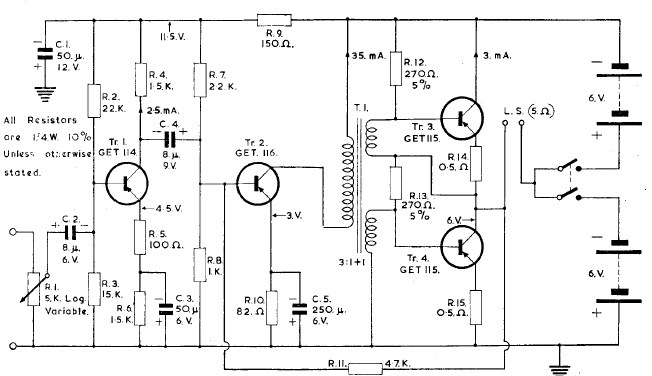

This is a battery powered 3W power amplifier using germanium transistors. The circuit is from an English documentation from 1967. The transistors are from the time.




| Clique na imagem para ampliar |
