Simple Diode Tester (CB4149E)

Details
Written by: Newton C. Braga

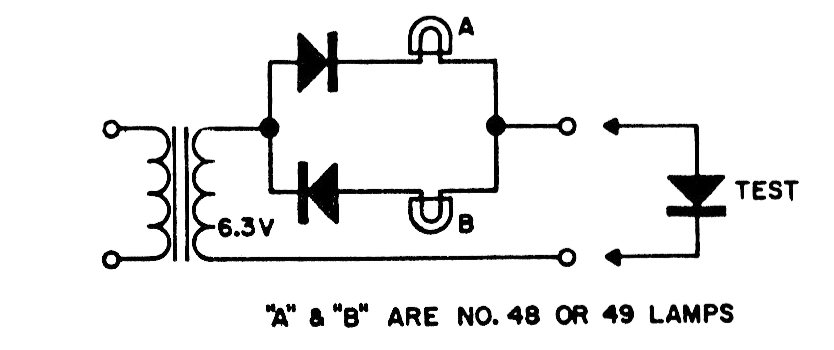

     This circuit is from an 80's publication. It makes use of small 6 V x 50 mA incandescent lamps. The diodes can be general purpose or even 1N4002. The transformer is 6.3 V with 100 mA or more current.




| Clique na imagem para ampliar |
