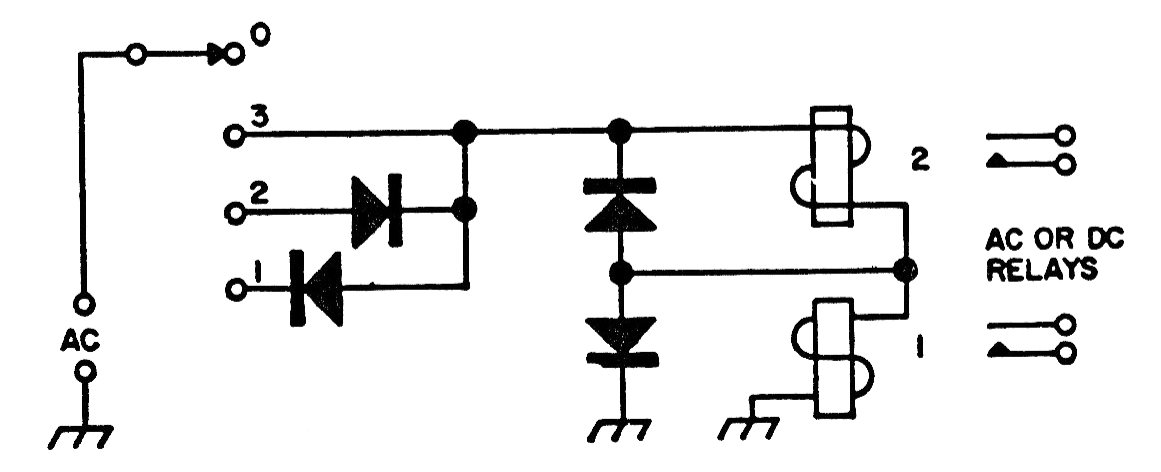

This configuration, already found in other articles in this section and on this site, was obtained in a 1980s documentation. The purpose of the circuit is to control two relays by a single wire. The diodes are general purpose and the AC voltage must have an RMS value according to the relay drive voltage.


| Clique na imagem para ampliar |





N° of component
