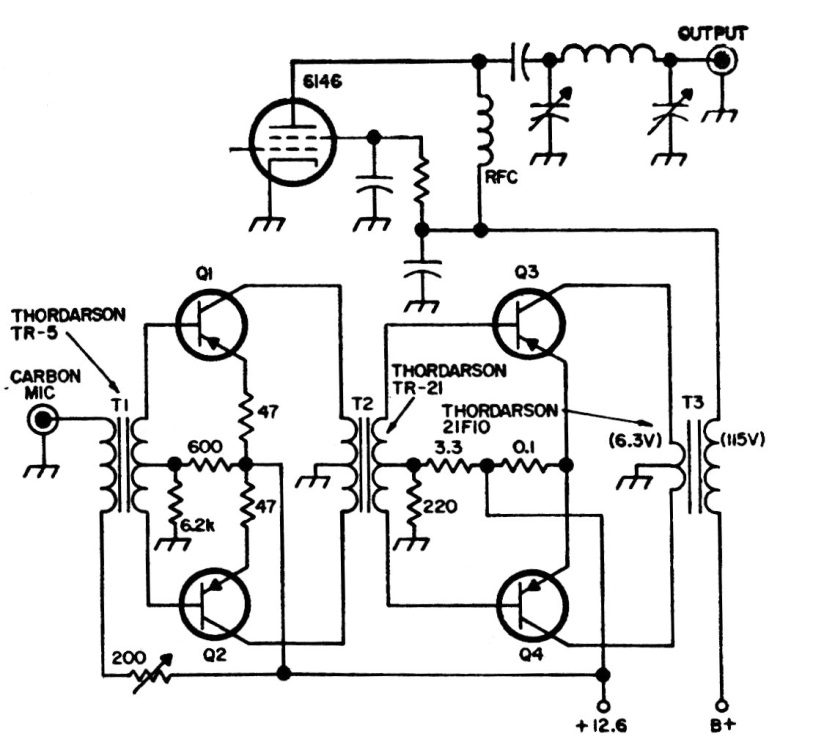

We found this circuit in a 1980s publication for amateur radio. It consists of an audio amplifier for amplitude modulation of a transmitter. The critical points of the circuit are transformers, of types not currently found in the specialized market. Transistors are of types such as 2N1172 for Q2 and Q1, 2N174 for Q3 and Q4. Modern equivalents can be searched.
