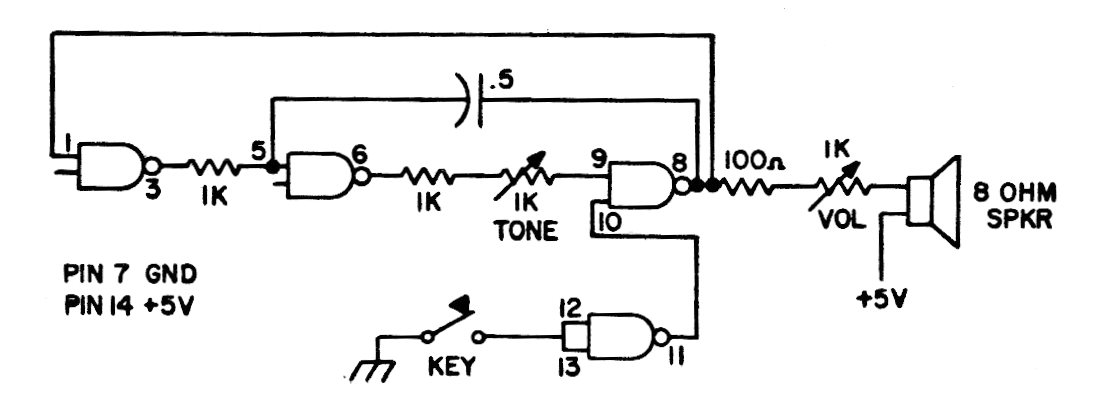

Code Practice TTL Oscillator (CB4188E)

Details: Written by: Newton C. Braga

This simple Morse Code oscillator was found in a 1980s American documentation. The power supply should be powered with 5V and the integrated can be the 7400.
