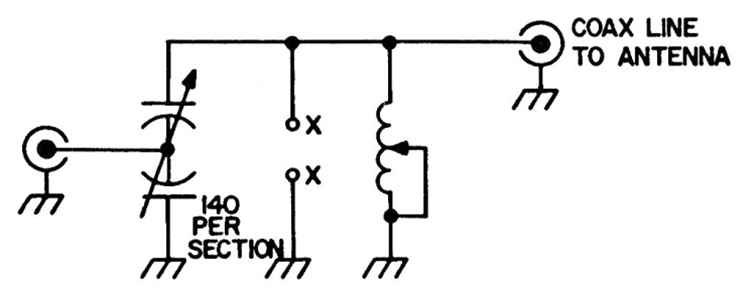

With this circuit it is possible to improve the standing wave ratio (SWR) of a transmission system with increased performance. The coil should have characteristics according to how often it works. The circuit is from an 80's documentation.




| Clique na imagem para ampliar |
