Simple Silencer CIR11577S CB4199E (CB4199E)

Details
Written by: Newton C. Braga

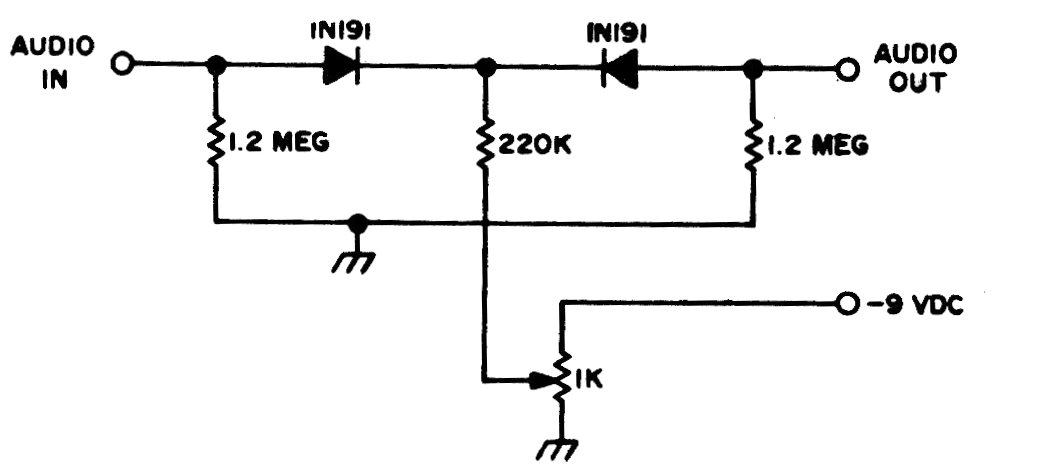

     This squelch circuit is placed at the input of the single receiver audio amplifier stage. Its purpose is to silence background noise. The circuit is from an 80's documentation.
