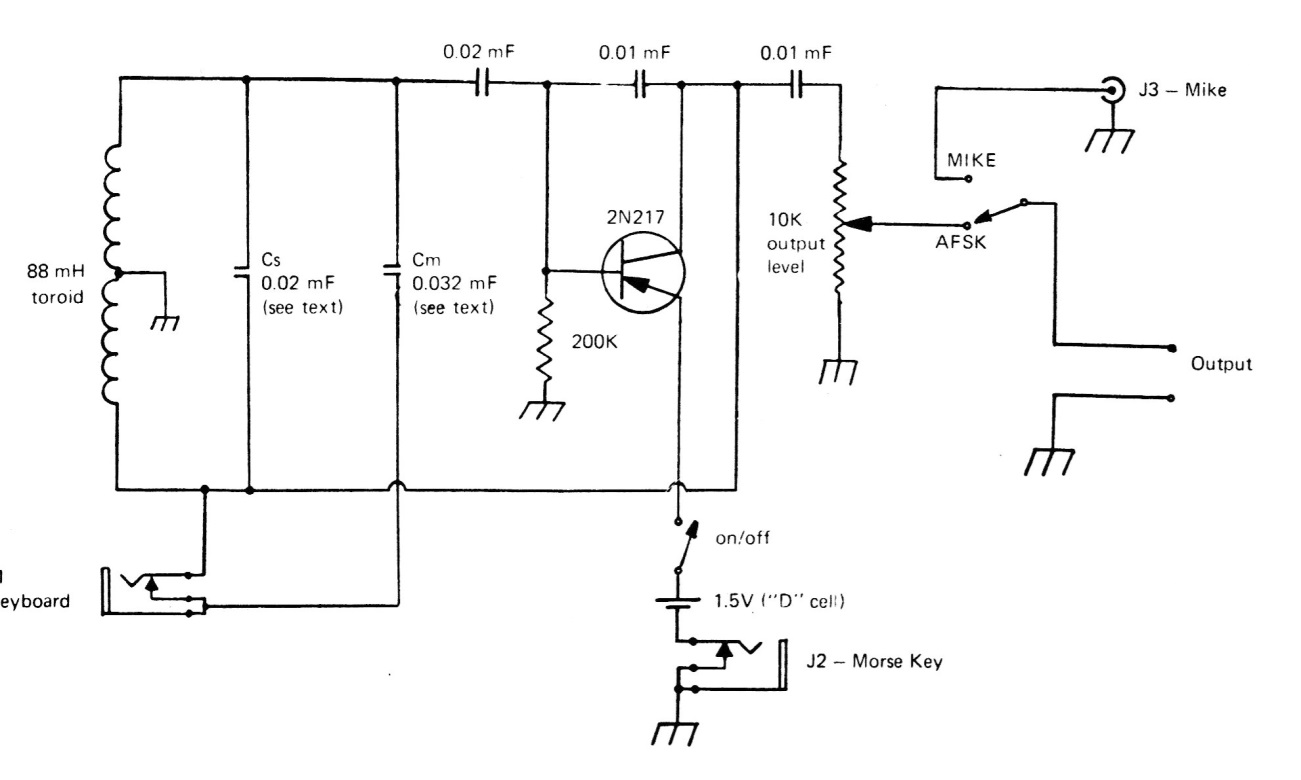

AFSK Tone Generator (CB4201E)

We find this encoding circuit in an American 1980s amateur radio documentation. The circuit can be implemented with equivalent modern components.
