Beat Oscillator (CB4208E)

Details
Written by: Newton C. Braga

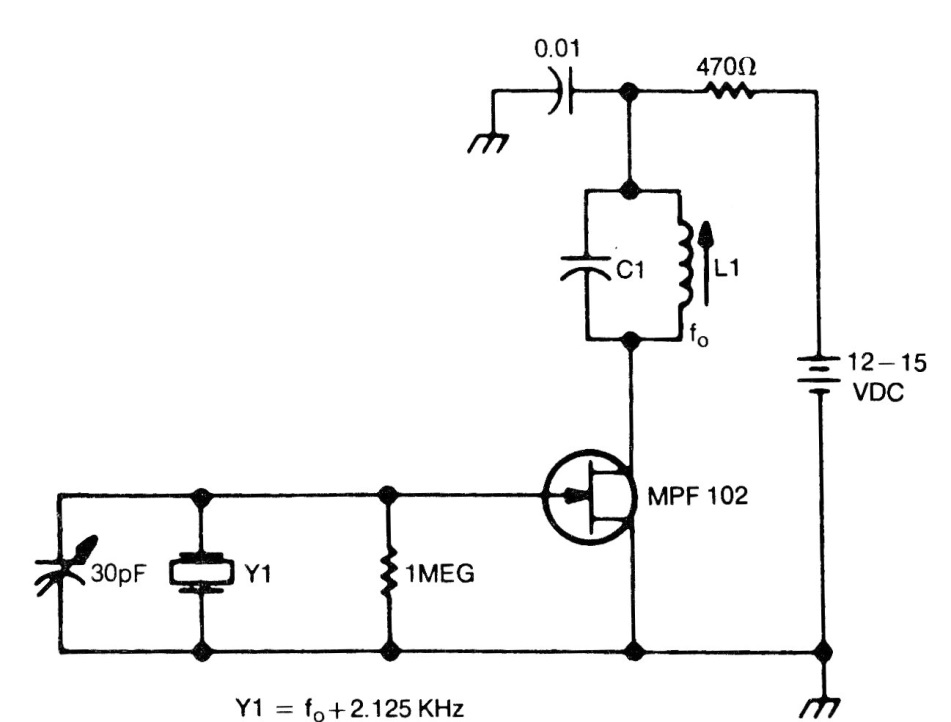

     Placed near a common receiver, this oscillator is intended to generate a beating signal to receive RTTY or SSB communications. The circuit is from old telecommunications documentation.
