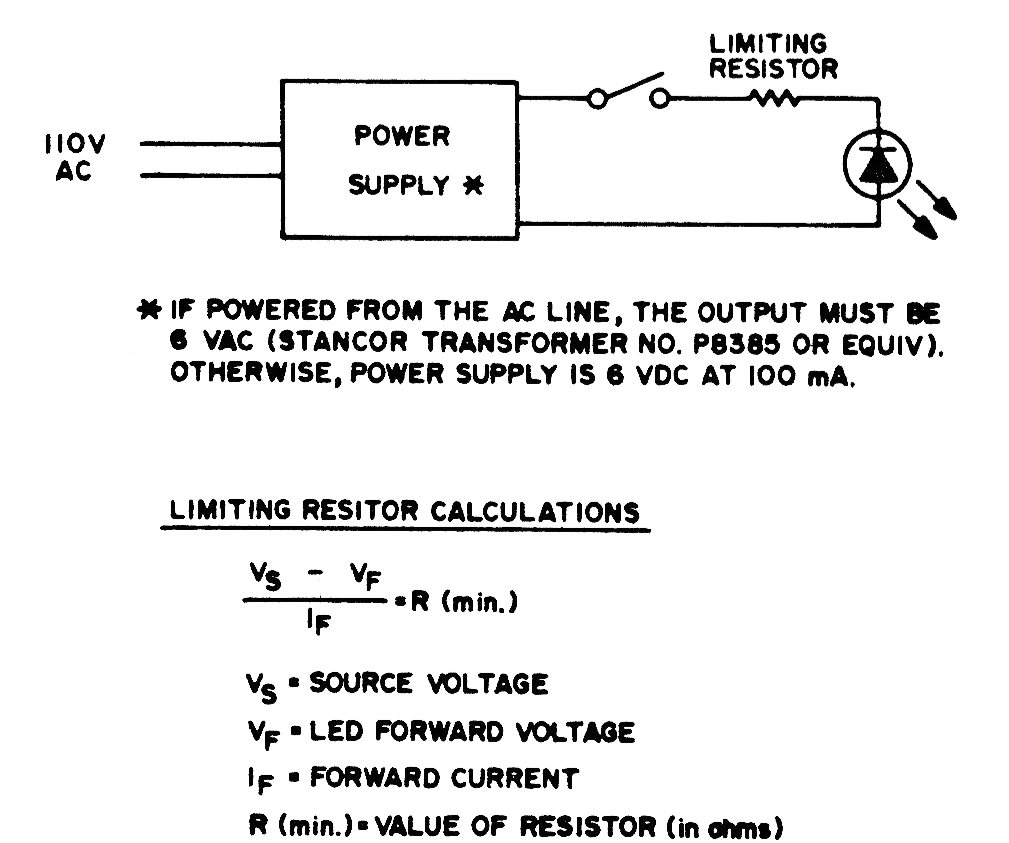

In the figure we have the way to connect an LED on the output of a power source to indicate the presence of voltage. We also have calculations to determine the value of the resistor that should be connected in series. This suggestion is from an 80's publication.
