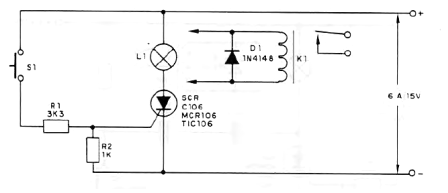

This circuit can turn-on (only) a load (relay or lamp) when S1 is pressed. The circuit can be used as an alarm and current drain is very low when the load is off. The circuit an be powered from 6 to 15 V supply and the current fall in the SCR on must be considered.
