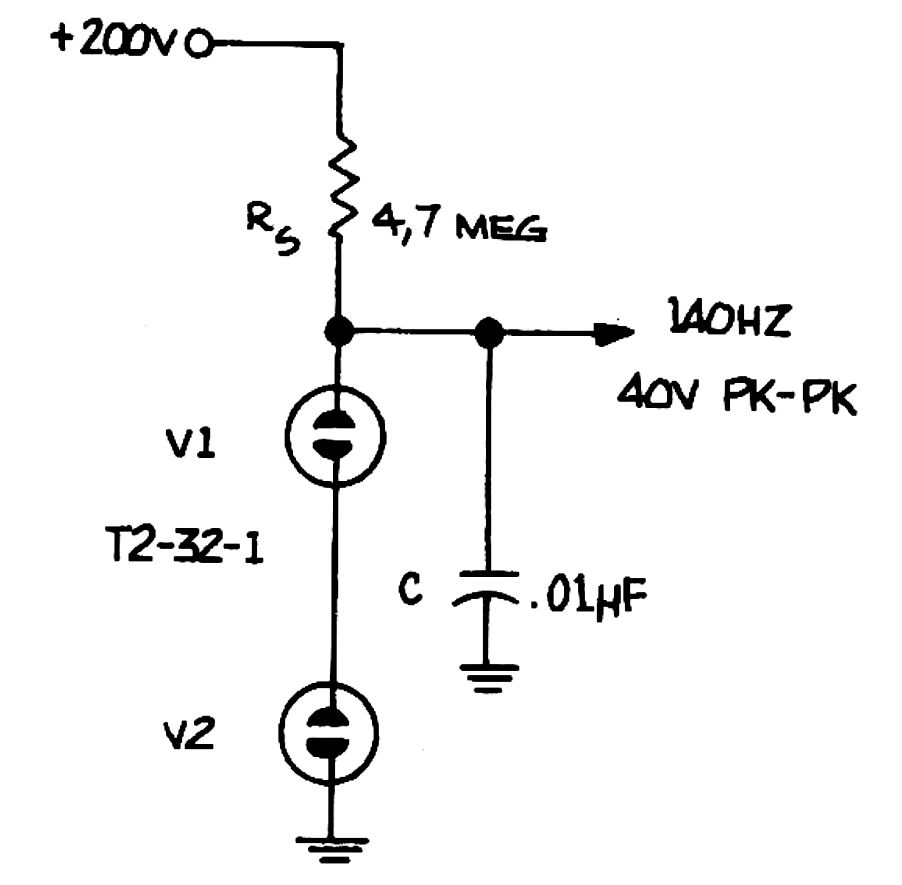

This simple neon lamp oscillator produces a 140 Hz, 40 V peak-to-peak signal. The frequency is given by the capacitor that can have its value changed. Note the high supply voltage.
| Clique na imagem para ampliar |
Neon oscillator (CB4239E)
