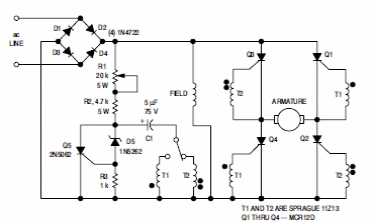

This circuit, from the ON Semiconductor Thyristor Manual, controls both the speed and direction of rotation of an alternating current (AC) shunt motor. Components used must be compatible with engine power.
