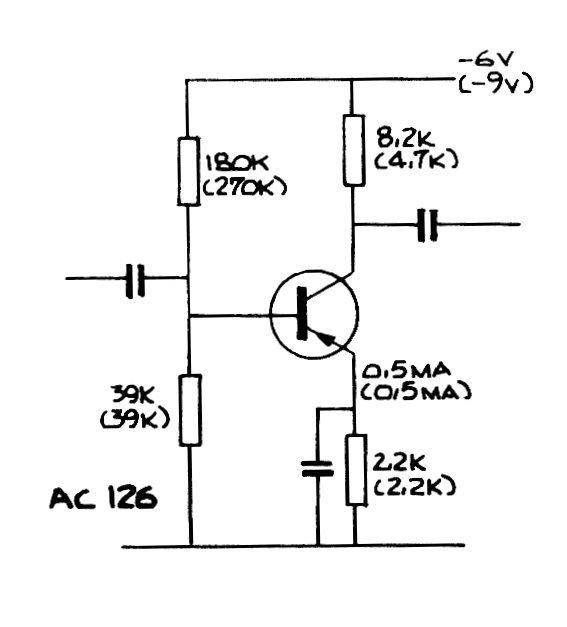

This is an amplifier stage with a typical germanium transistor from the 60's to the 70's. The circuit serves as the audio preamplifier and typical capacitor values are between 100 nF and 470 nF.
AC126 amplifier stage (CB4265E)
- Details
- Written by: Newton C. Braga
