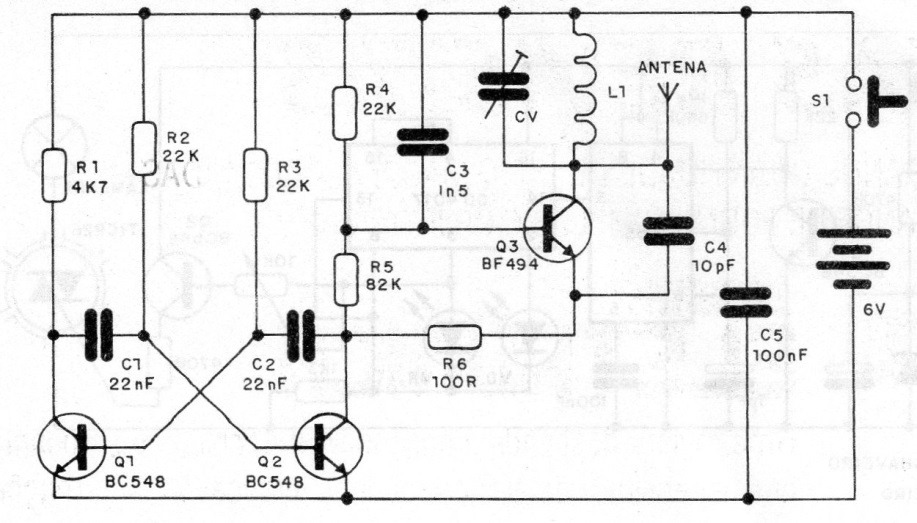

This circuit can be used with the CB4296E receiver or others described on this site. The circuit has a good range and L1 consists of 5 or 6 loops of 26 or 28 1 cm shaped wire without core. The antenna is telescopic 60 to 100 cm long. The power is made with 4 small batteries.


| Clique na imagem para ampliar |





N° of component
