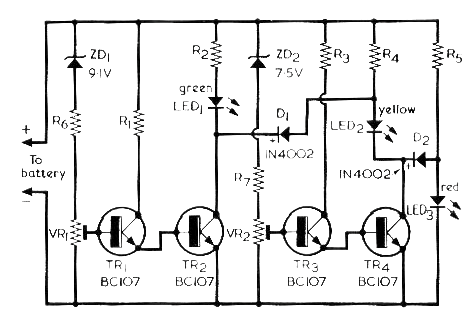

This circuit was found in an English magazine Radio & Electronics Constructor of February 1977. The magazine no longer exists, but the circuit can be easily assembled by replacing BC108 with BC548. The circuit indicates the state of the car battery in three voltage ranges through three color LEDs. Weak, good and overload.
