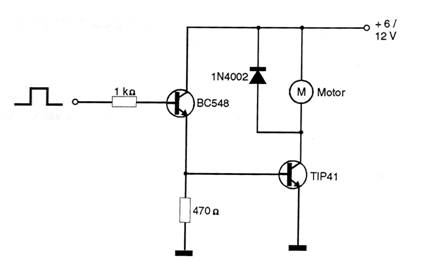

DC motors from 6 to 12 volts and currents up to 2 amps can be controlled with this circuit. The TIP41 transistor admits equivalent and must be equipped with a good heat radiator. With a positive voltage between 0.6 volts and 5 volts we have the motor drive.
