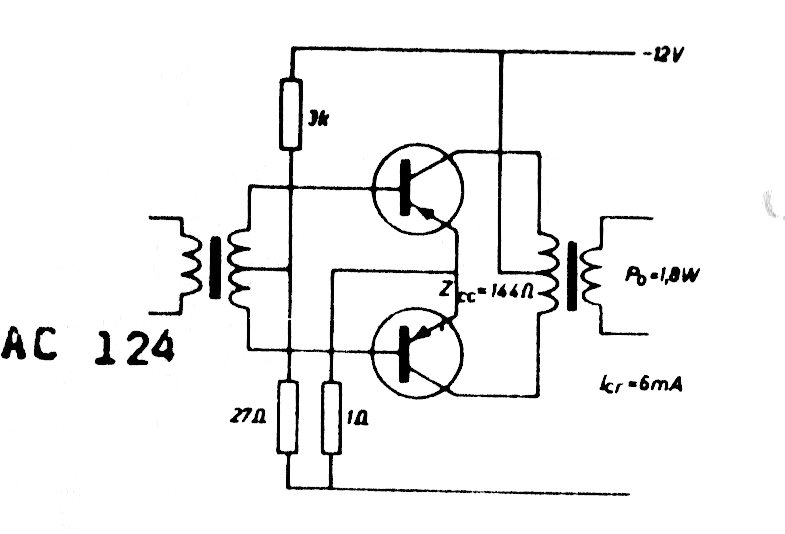

1.8 W Push Pull Stage (CB4282E)

Details
Written by: Newton C. Braga



     The transistor used in this circuit is uncommon today. AC124 or equivalent such as AC188K and 2N2431 can be used. The circuit is from the 80's and makes use of transformers.
