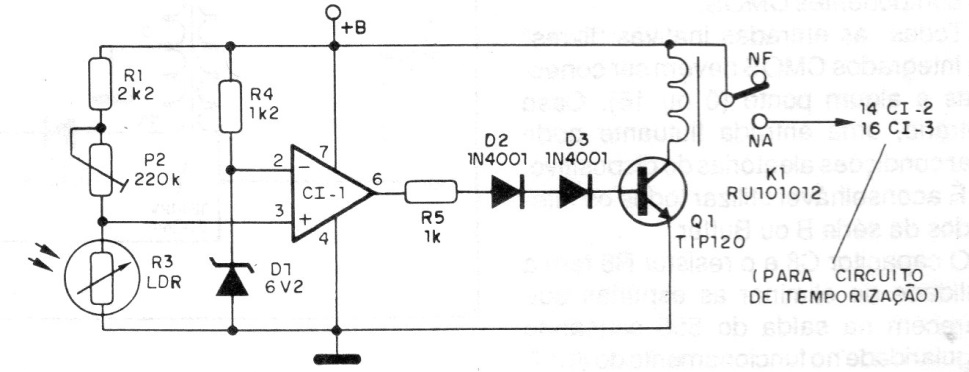

This circuit was originally used in a 1989 documentation presence simulator. The circuit activates a relay when light falling on the LDR is cut off. Power must be supplied with 12 V which is the relay voltage used. 741 equivalents may be used.
