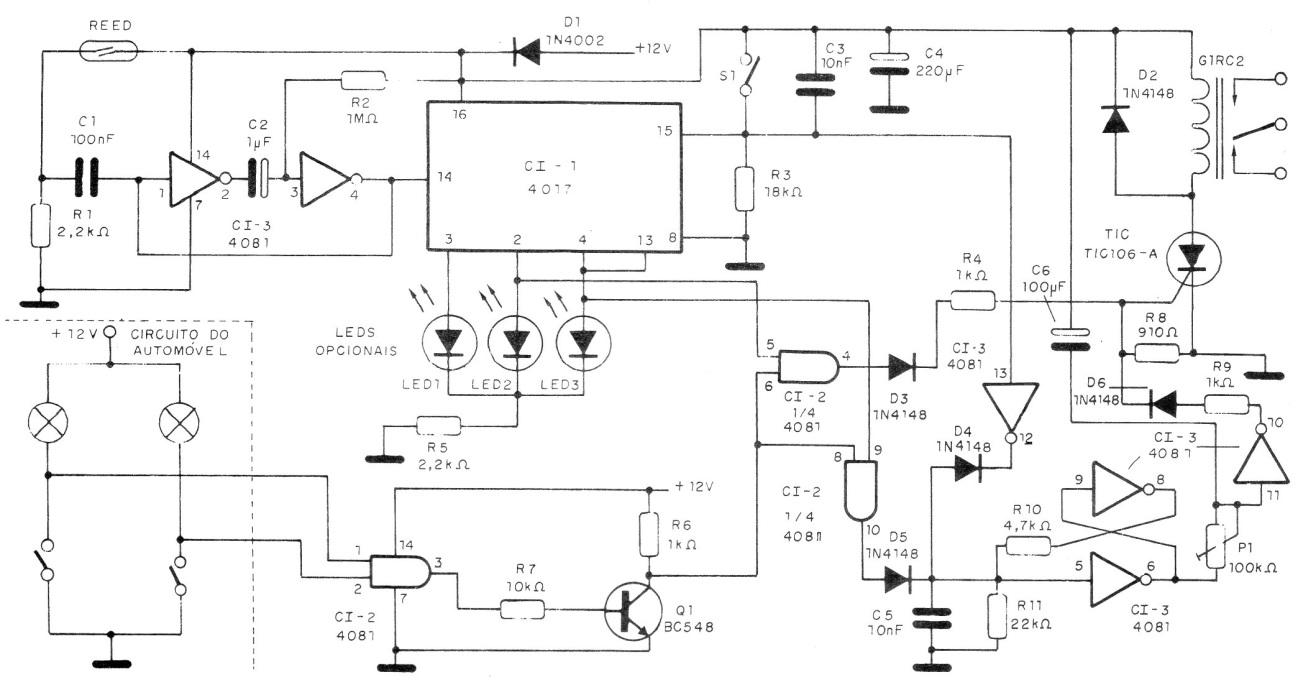

We found this alarm in a 1992 documentation. The circuit has several timings and the relay can either act on the horn or turn off the ignition system. Electrolytic capacitors are for 16 V or more and other components are common.
| Clique na imagem para ampliar |
