RTD Bridge with Operational (CB4393E)

Details: Written by: Newton C. Braga

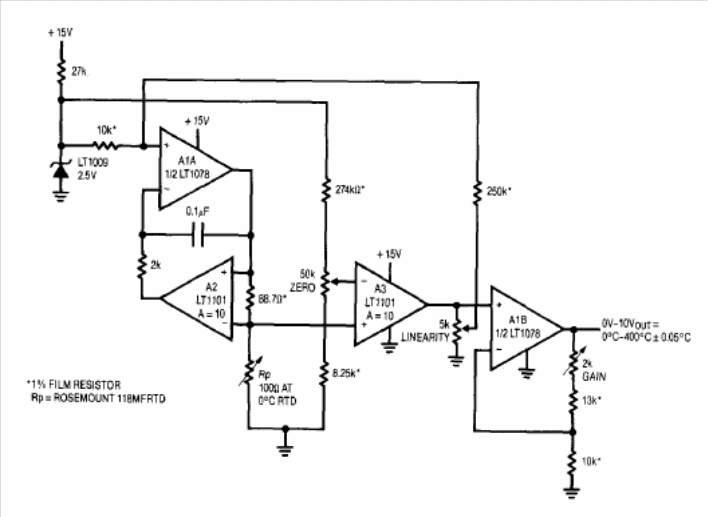

The circuit shown in the figure below is from the 1993 Linear Technology Applications. The operational ones used are uncommon and the use of equivalents can be analyzed.
