Self-timer (CB4456E)

Details
Written by: Newton C. Braga

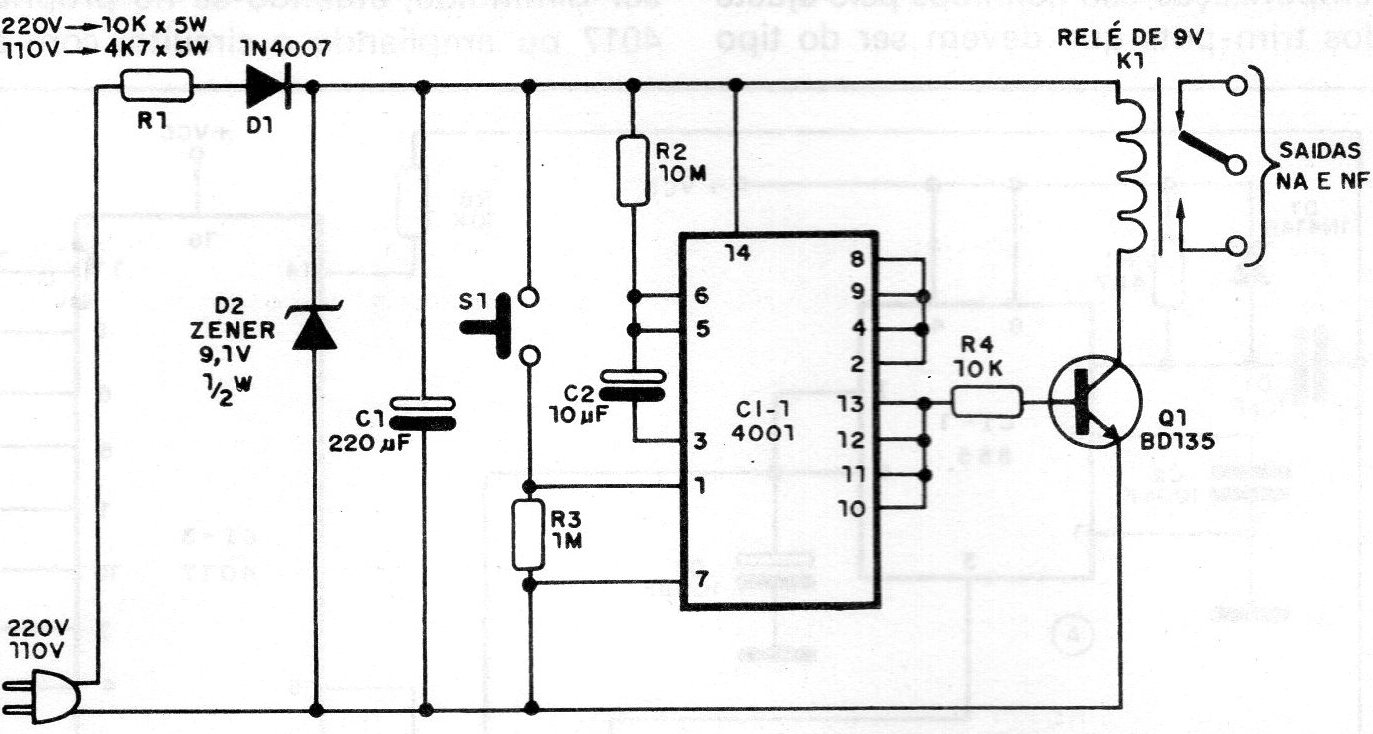

    This circuit can keep a set of lamps on for up to 1 minute, time given by C2 and R2 that can be changed. The load depends on the relay. The circuit is old, from 1988 documentation, but totally viable today.
