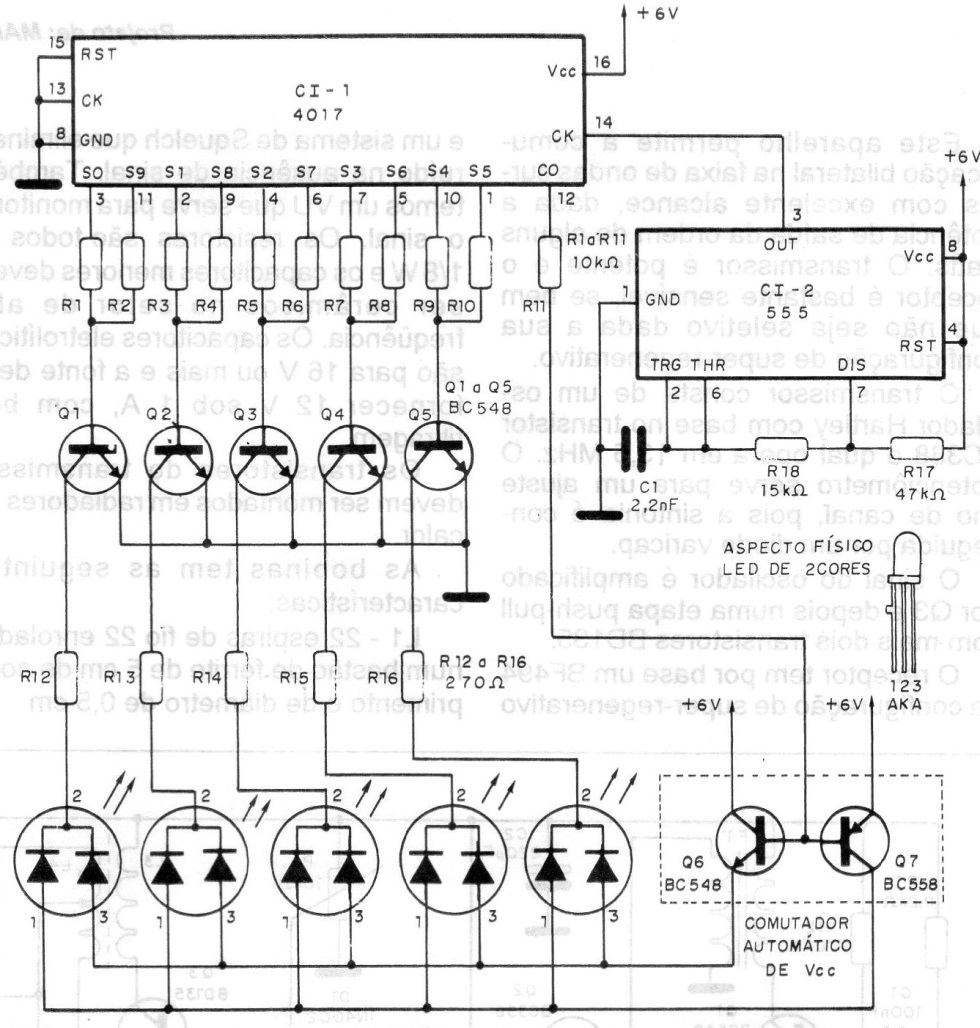

This circuit using current components was found in an old documentation. It is a sequential circuit with bicolor LEDs that can be powered with voltages from 5 to 12 V. The speed of the effect depends on the resistors next to the 555 and how the excitation is made by transistors can be used powerful LEDs.


| Clique na imagem para ampliar |





N° of component
