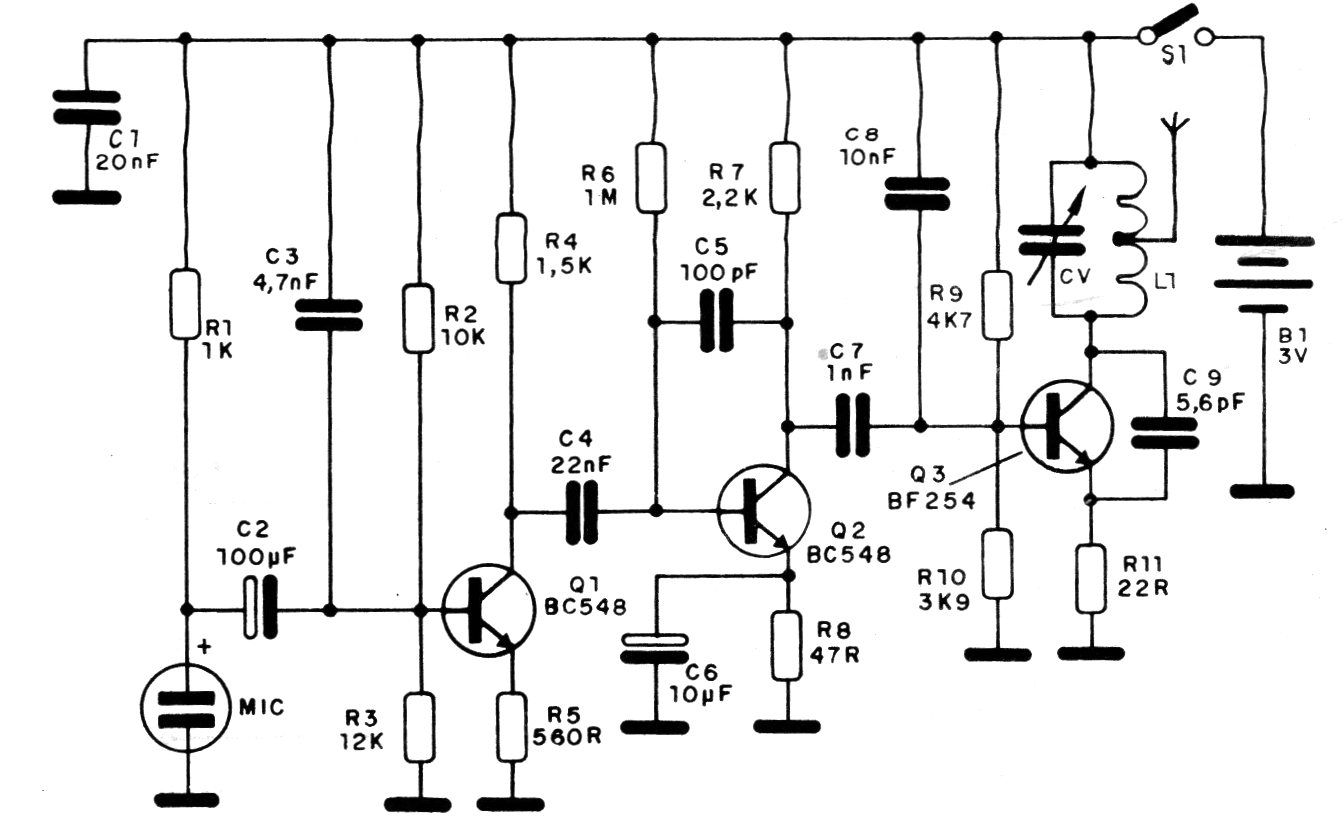

This small FM transmitter has a sensitive modulating stage and is therefore suitable for listening to conversations. The bobbin has 2 + 2 loops of 26 or 26 yarn in a 1 cm shape without core. The antenna can be telescopic, resulting in a range of about 100 meters, depending on the propagation conditions.
| Clique na imagem para ampliar |
