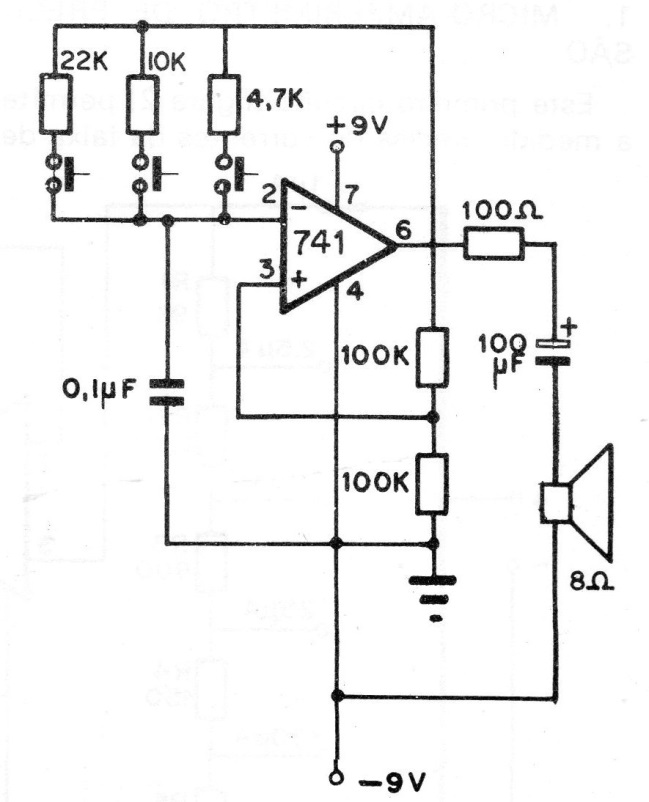

This circuit can be used as a buzzer from 3 different locations, allowing you to identify where it went from. The source shall be symmetrical and may consist of two sets of 6 to 9 V batteries. The frequency is given by the resistors next to the push buttons.
